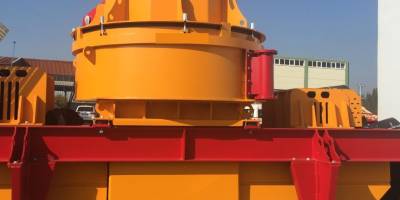

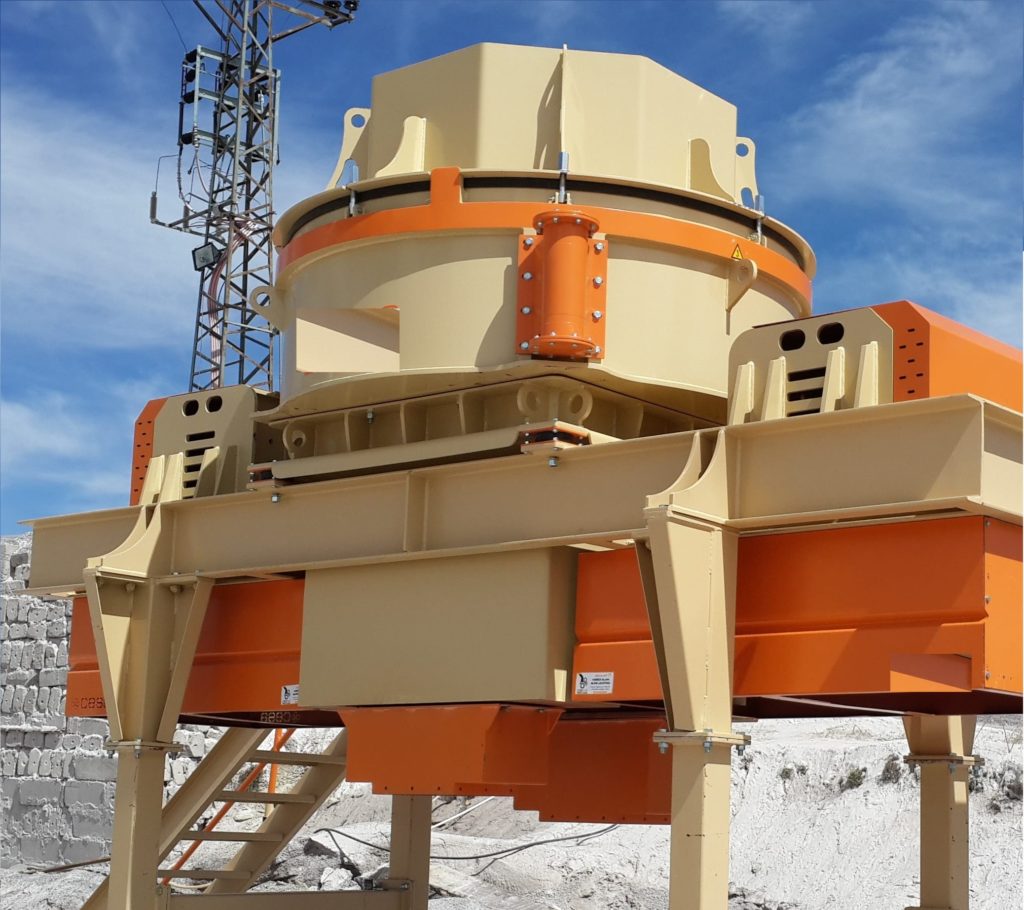

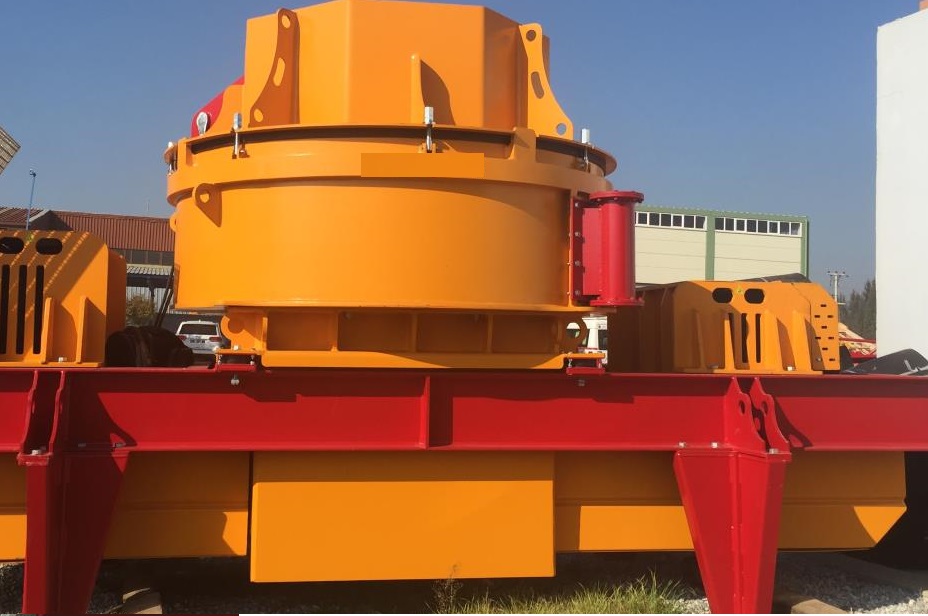

Vertical Shaft Crushers
They are especially preferred crushers for obtaining fine products from hard materials and making cubic shapes of flat materials.
Crushers are used to obtain 0.5 mm sand and gravel by breaking the medium size hard abrasive material used in mining and construction sector.
| Type | Rotor Diameter (mm) | Max. Part Size (mm) | Capacity (t/s) | Motor Power kW/rpm | Weight (kg) |
|---|---|---|---|---|---|
| MBCS 70 | 700 | 38 | 150 | 2x110/1500 | 10000 |
| MBCS 80 | 800 | 38 | 200 | 2x160 /1500 | 12000 |
| MBCS 90 | 900 | 38 | 300 | 2x200 / 1500 | 14000 |
